Rubber aging test according to ASTM D 1149 and ISO 1431 (2012)
Determination of fatigue strength according to Wöhler
Determination of the strength criterion
Determination of fatigue strength based on 10 years (or similar)
Cable testing according to IEC 60811-2-1, method A and B
Testing according to VDE 0472, A, B, C and EN50396
Static and dynamic testing with/without rotation
Check continuously and/or intermittently
Test range: 0…1000 pphmv (ISO 1431-1) Chamber volume: 310 liters Chamber dimensions: H181 x W99 x D120(+10) cm Make PLC: SIEMENS LOGO TD

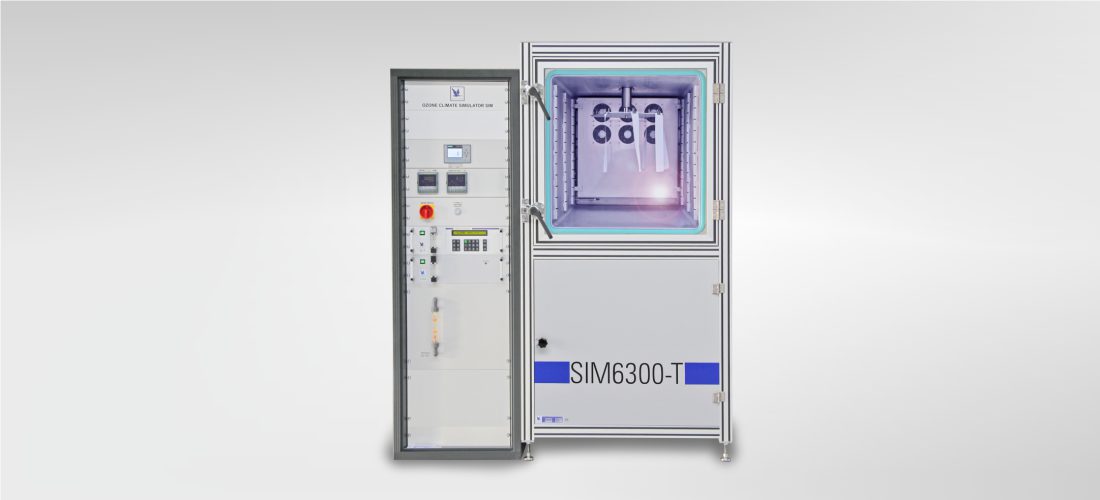

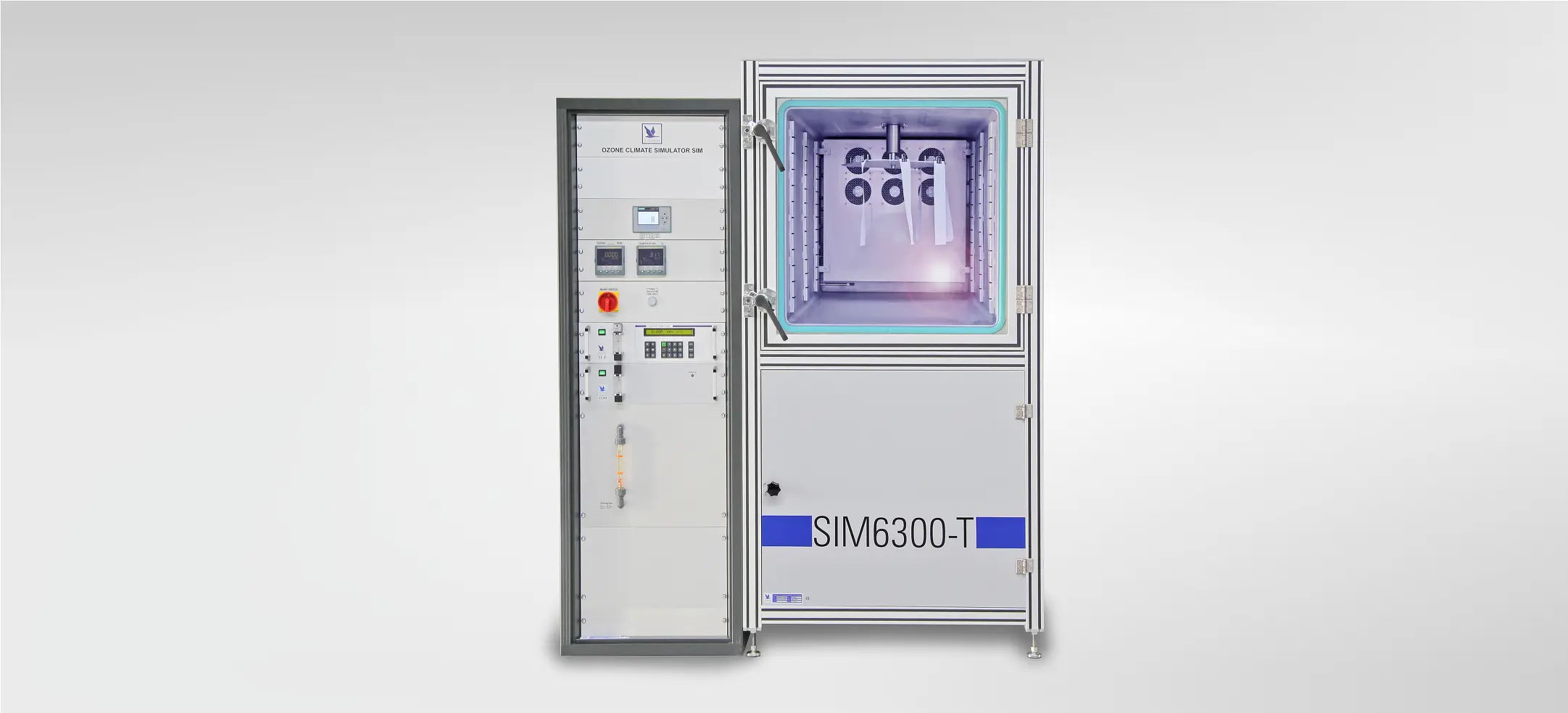

Ozone Test Chamber SIM6300-T
Article number: SIM6300-T
The Anseros Ozone Climate Simulator includes all basic instruments for rubber aging and crack testing. They are designed to perform the simulations necessary for 10 years of durability testing.
The device offers a reliable ozone generator (maintenance free) and a more precisely certified ozone analyzer MP for automatic control of the ozone level in the chamber. A digital data logging interface RS232 is available along with the Anseros data logging software AMACS. Interruption procedures during endurance tests can be adjusted by a PLC control. In closed loop version, a turbojet is installed for safety reasons to destroy any ozone through catalytic converter or carbon filter.
