Advanced ozone production with double-walled JENA quartz plasma discharge modules using high frequency generated by innovative IGBT devices. The ozone gas output is completely free of metallic particles and thus suitable for clean technologies like semiconductor and medical processes. The efficiency of the AOP technologies is amazing, especially for waste water oxidation in combination with AOPR pipe reactors. This is due to a mass transfer rate 10 times higher compared to classic ozone generators. The TCO are zero since no seals are built in and the discharge modules cannot be affected by any corrosion. As a consequence, the device is maintenance-free and ready for a long operation lifecycle. Fouling of electrodes and a decline of the ozone capacity is impossible. Doping gases, like N2, Ar, or others are not required. Any kind and quality of carrier gas can be used – dry air, humidified air, ambient air, oxygen from SEP/PSA-systems or pure oxygen (any class) from cylinder.
Water oxidation and sterilization
UPW ultra-pure water treatment
Sanitization of surfaces
Research & development

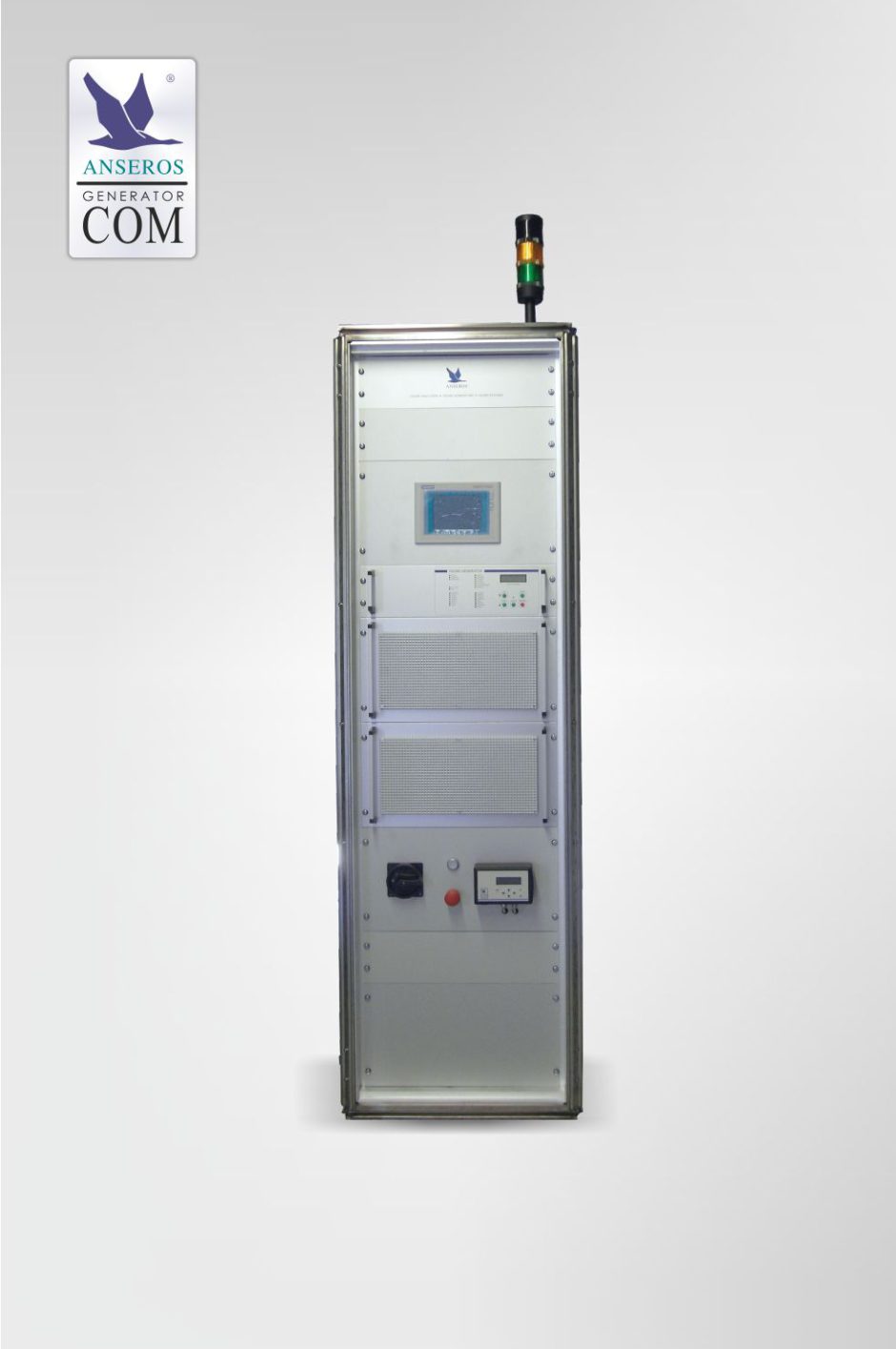

Ozone capacity: 100 … 1000 g O3/h Ozone enthalpy: 400 g O3/h @ 3.000 Nl/h (SEPgas) Ozone concentration: 0.1 … 190 g O3/Nm3 Gas flow: 0.1 – 10.000 Nl/h with MFC Frequency control range: 0.1 – 100% capacity Remote control: interface built in, safety cutoff switch Carrier gas: any oxygen-containing gas, oil-free Chiller: water cooling Dimension: 19”/43HU/600 mm, rack mounting or portable housing Cabinet: H2400 mm x D600 mm x W1500 mm Connector inlet/outlet: 1” – NW25 PFA tube Weight: 2045 kg
