ANSEROS-ozone-test-chamber-SIM6050-T-landscape

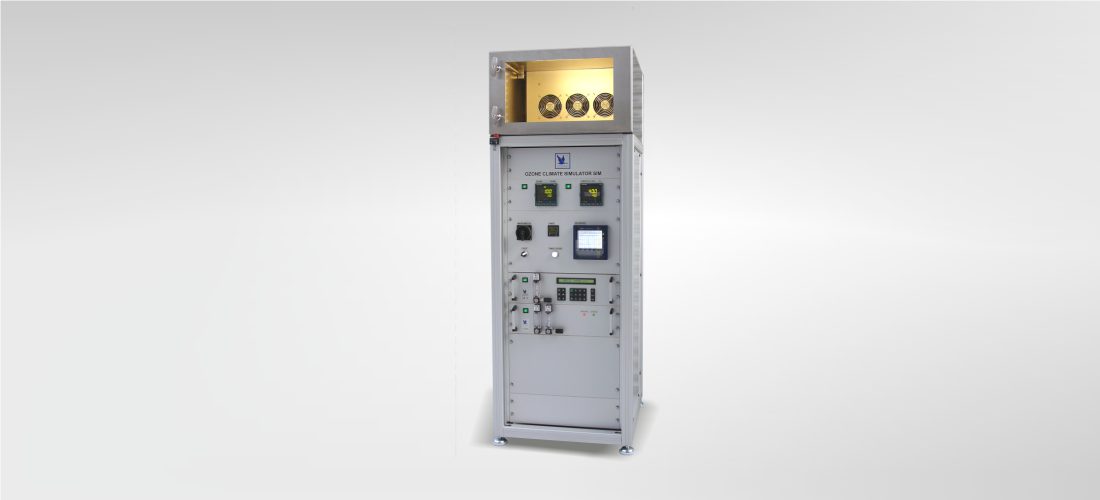

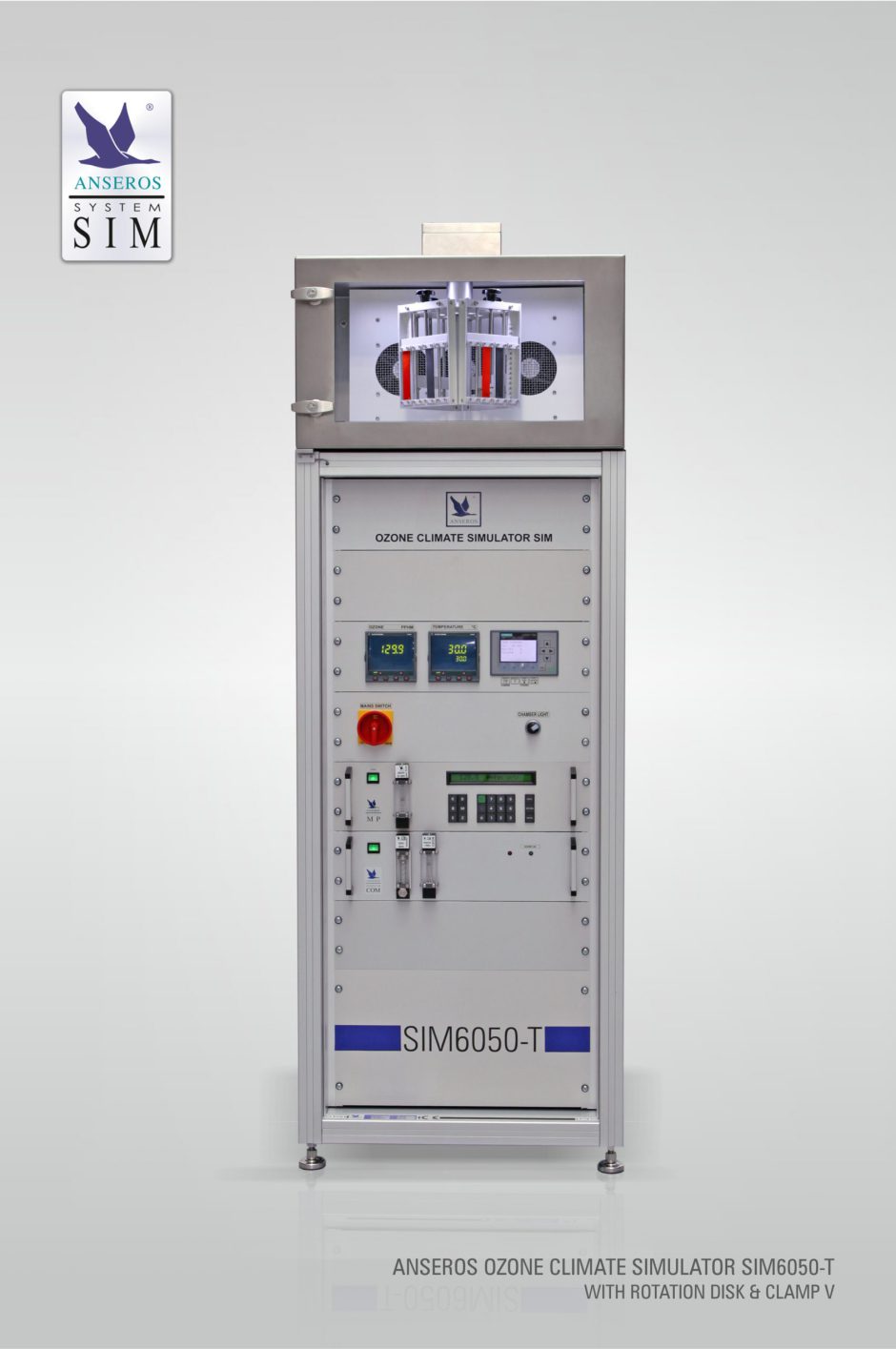

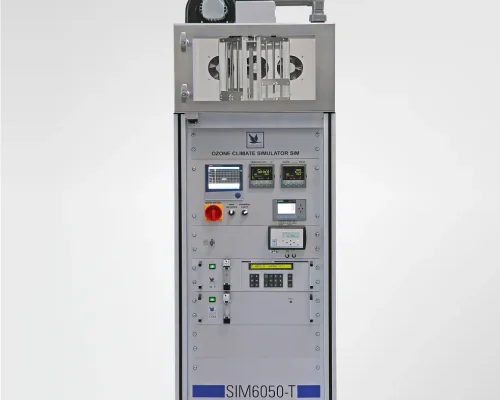

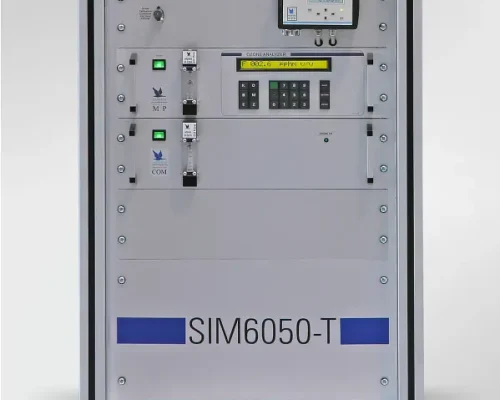

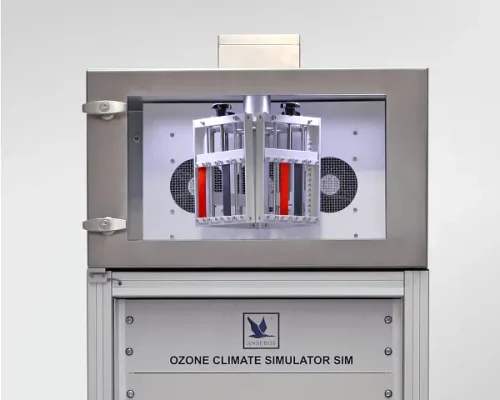

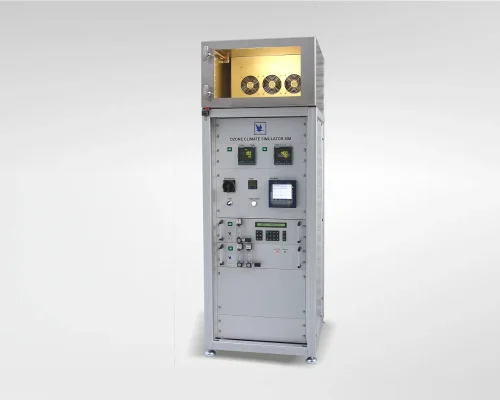

Ozone Test Chamber SIM6050-T

Article number: SIM6050-T
ANSEROS-ozone-test-chamber-SIM6050-T

Product details

The Anseros ozone simulator SIM6050-T is an entry-level model at an affordable price and fully meets the requirements of the American ASTM D 1149 standard. The chamber dimensions are suitable for simple static tests and to a limited extent for dynamic tests according to ASTM D 1149. A PLC Siemens LOGO TD is installed as standard for process control, as well as discrete PID industrial controllers. Digital data recorders are optionally available, as well as digital interfaces with in-house software AMACS for data registration and storage. A certificate based on traceability with DKD devices is available for the MP ozone analyzer. The carrier gas is specially produced in the device from atmospheric air. Foreign gases are not required. Output gases are ozone-free. There is intrinsic safety, not least due to a door contact.

Applications

Aging test of rubber parts according to ASTM D 1149 and DIN ISO 1431

Industries

Technical data

Dimensions: H168 x W60 x D65 (+10) cm
Weight: 71 kg
Dimensions chamber H35 x W60 x D50 cm
Power supply: 230 V / 120V-50 / 60Hz
Certificate: KGB-MP (DKD / DAKKS) and CE

Please contact for further info.

Contact us and arrange a non-binding consultation. We will be happy to advise you personally and individually. Tel: +49-(0)7071-7995-0
