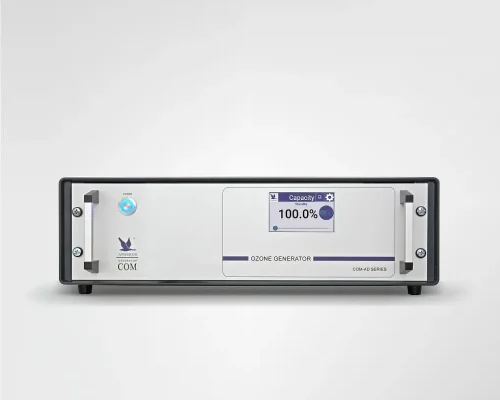

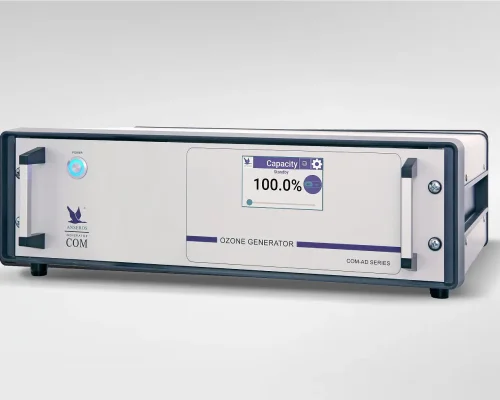

Ozone Generator COM-ADM 2.0

ANSEROS ozone generator COM-ADM-2.0

Product details

Advanced ozone production is achieved using double-walled Jena quartz plasma discharge modules featuring MetallSputterShield technology (AMS). The ozone gas output is completely free of metallic particles, making it ideal for clean technologies. As there are no built-in seals, there are no TCOs and the discharge modules cannot be affected by corrosion. Consequently, the device is maintenance-free and ready for long-term operation. Fouling of the electrodes and a decline in ozone capacity are impossible. Doping gases such as N₂, Ar and others are not required. Any type and quality of carrier gas can be used, including dry air, humidified air, ambient air, oxygen from generator systems, or pure oxygen of any grade from a cylinder.
Ref. COM-ADM 2.0
Power supply: 230VAC-50/60Hz
Ozone capacity: <100 mg O3/h
Ozone concentration: 0-1,2 g O3 /Nm3
Control range: 0 – 100%
External remote control: 0/4 – 20 mA, Modbus TCP/IP (optional)
Carrier gas: O2 > 99,9% or SEPgas 80% O2 / 20% N2
Dimension: 19″ / 3HU / 400mm
Weight: 8 kg
+ ANSEROS Original, best quality since 40 years
+ 100 % Made-In-Germany (Headquarter Tübingen)
+ Anti-Metall-Sputter-Shield (AMS), No metal particles from electrodes
+ Stabil ozone generation (24/7), suitable for processing industry
+ Adjustable capacity range 0-100%
+ Air-cooled ozone generator, no cooling water needed
+ Robust generator again backflows and acids
+ Feed by oxygen generator or cylinder, no nitrogen is needed
+ Maintanc-free (longlife quartz tubes, no Seals, ozone resistant materials integrated)
+ Low TCO (Total Cost of Ownership)
+ Analogue and digital interface: 0/4-20mA, ModbusTCP
+ Compatible with all ANSEROS Systems
+ Semiconductor processing
+ Water sterilization
+ Ultra-pure water treatment
+ Food production
+ Research & development
+ Pharmaceutical production
+ Pilot installations
