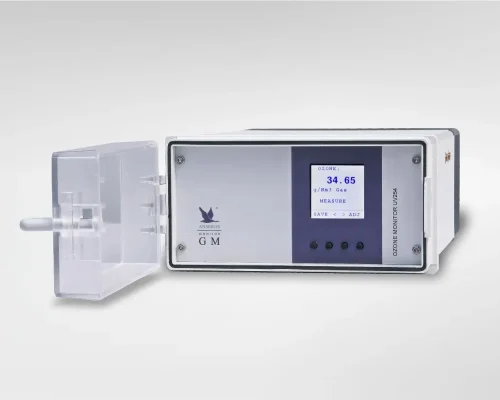

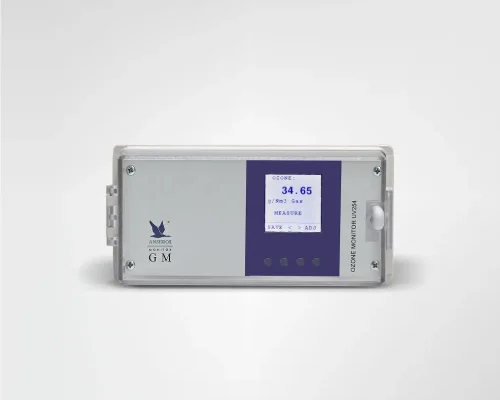

Ozone Gas Analyzer GM-OEM

Article number: GM-OEM
ANSEROS-Ozone Gas Analyzer GM-OEM overview

Product details

Single-beam NDUV-photometer without moving parts for on-line monitoring of ozone in the gas phase under dry or humidified conditions according to DIN19627. CE-approval.


Process control: ozone generator output, offgas monitoring
Research and pilots: ozonization balance and efficiency
Quality control in ozone generator manufacturing


Technical data

Principle: UVC 253,7 nm with advanced mirror technology
Extinction coefficient: 3024 dm3/cm*mol according to DIN19627
Measuring range SI: 0.001 – 2 / 10 / 20 / 100 / 200 / 300 g O3/Nm3
UV intensity auto-control
Sample port: 1/8” – 4.3/3 mm PFA tube
Gas flow rate: 0.1 – 1 Nl/min
Gas pressure: 1 – 5 bar (g)
Dimensions: H72 x W144 x D230 mm
Enclosure protection class: IP65
Analog signal output: 0/4 – 20 mA, BNC
Power supply: 230/110 VAC-50/60Hz, mains adapter built in

Please contact for further info.
