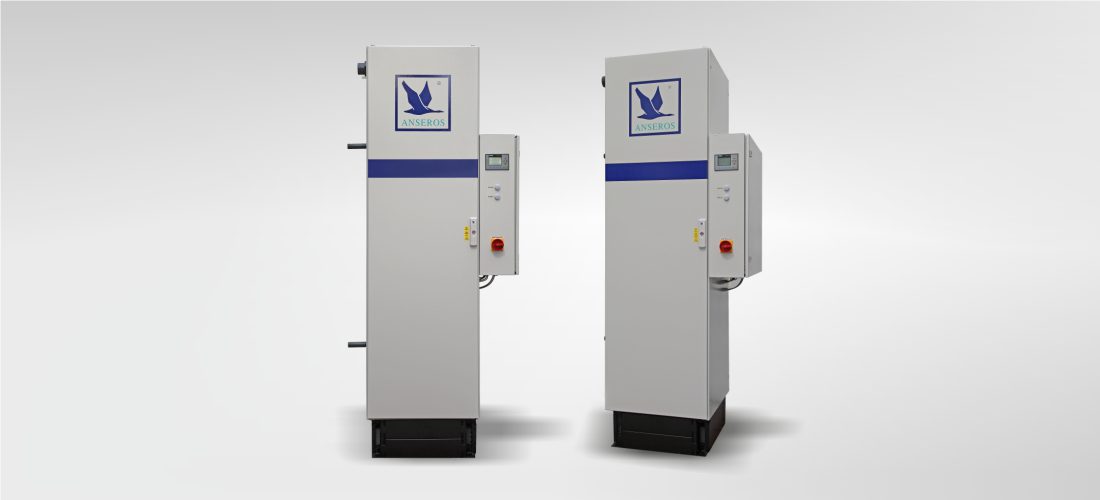

Anseros-ozone-destructor-CAT-UVC-0230-landscape

Ozone Destructor CAT-UV-0230

Article number: CAT-UV-0230
ANSEROS ozone destructor CAT UVC 0230

Product details

The Anseros UV radiation system and UV monitoring unit has a centrical arranged low-pressure lamp in protective quartz tube. The Lamp is easy to demountable because of the Quartz tube to one side. The UV device includes a 4 m lamp cable and operating display with integrated operating time counter. The UV control unit has a sensor and monitor which are integrated in a switch cabinet. The temperature sensor operates with pre- alarm by relay contact, main alarm/ powering down the system / automatic power on after cooling.

Applications

Destruction of ozone residuals in ultra-pure water processing
Water treatment
Air treatment
Off-gasing
Semiconductor industry
Industrial water processing
municipal water processing

Technical data

UV-Cabinet:
module size: 210mmx380mmx600mm
material: stainless steel 1.4301
weight: 30 kg
degree of protection: IP54

UV-reactor:
Material: 1.4404 According DIN11850
Connector: TC DN 40 according DIN 32676, stainless steel 1.4404
Seals: EPDM
water temperature: 5-60°
ambient air temperature: max. 35°
max. pressure: 10 bar
maximal pressure loss: ca. 0,1 bar
degree of protection: Ip65
supply voltage: 230 V; 50/60 Hz
connected power: 430 W

UV-Lamp:
quantity: 1 unit
low pressure lamp: 400 W
UV-C-Power 254 nm (at the end of lamp lifetime)
lamp lifetime: 9.000 h to 12.000h
quartz tubes: 1 unnit ( demountable, one side closed) of pure quartz

UV control unit:
SIEMENS PLC with Touchpad

Please contact for further info.
