ANSEROS ozone test chamber SIM7500-TH

Applications

Rubber aging tests according to ASTM D 1149 and DIN ISO 1431
Determination of the fatigue strength by Wöhler
Determination of the strength criterion
Determination of the fatigue strength for a defined period of 10 years (or similar)
Cable testing according to IEC 60811-2-1, method A and B
Test according to VDE 0472, A, B, C and EN50396
Static and dynamic test with/without rotation
Continuous and/or intermittent tests

Technical data

Chamber volume: 500 liters
Interior chamber measures: H61 x W80(-3) x D80 cm
Flow principle in the chamber: longitudinal, laminar and turbulent

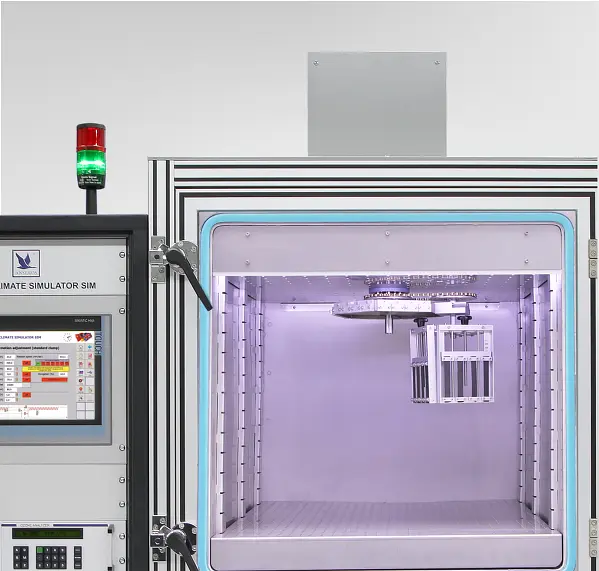

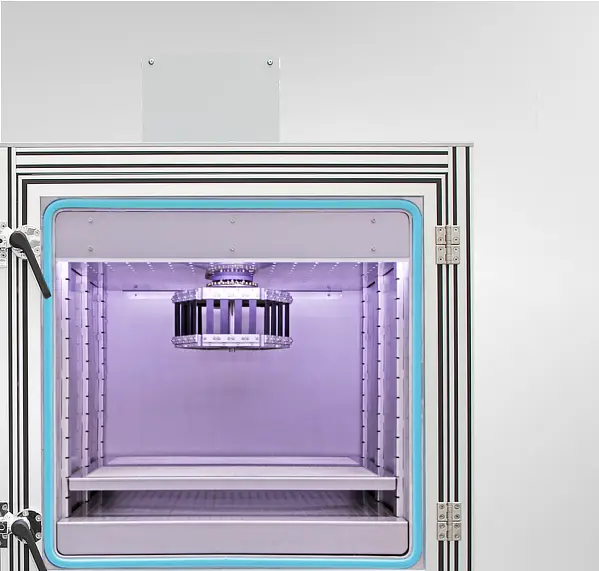

The carousel motion will be used in case of low air velocities (> 8 mm/s) to avoid the effect of a profile in ozone concentration, temperature and humidity. The SIM7500-TH is suitable to cover all related national and international standards.

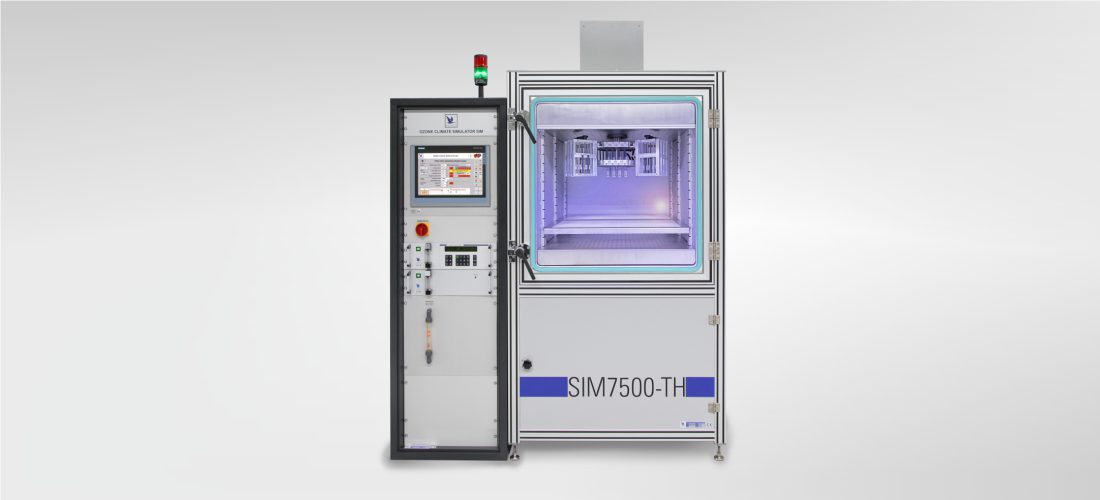

Ozone Climate Simulator SIM7500-TH

Article number: SIM7500-TH

Product details

The Anseros Ozone Climate Simulator SIM7500-TH is equipped with a patented longitudinal airflow system. Two screens are located on top and at the bottom to distribute the ozone air longitudinally to the axle of the samples with high flow rates of 600 mm/s or with low flow rates down to 8 mm/s, in which case the ozone attack is 70% lower.
