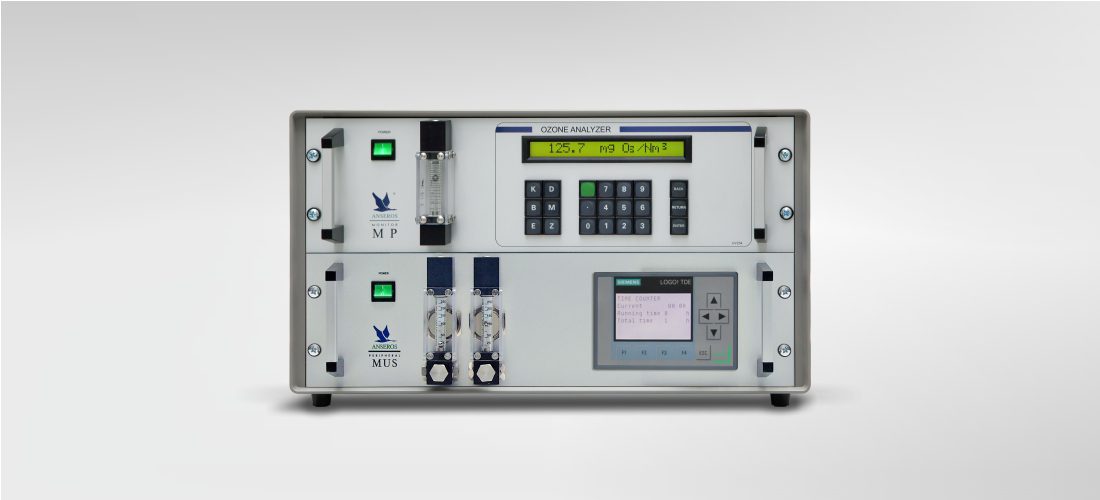

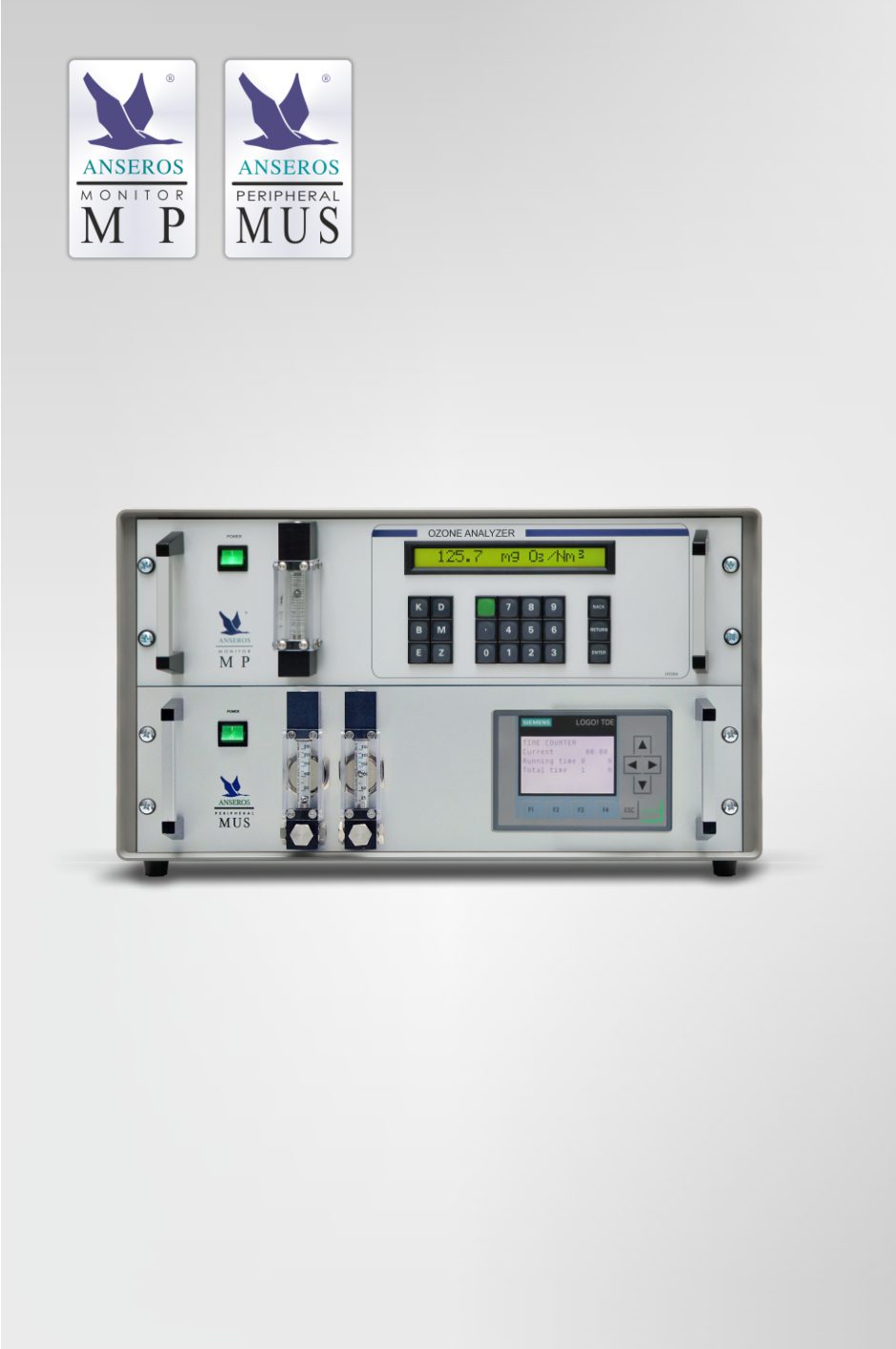

Ozone Ambient Air Monitor MPMUS1X8

Article number: MPMUS1X8
Ambient air multiport monitor MPMUS

Product details

The Ozone ambient air monitor MPMUS1X8 is a multiport analyser for continous ozone measurement at different sample ports and alarm safety.

+ Advanced microprocessor technology
+ All parameters software-programmable
+ Graphical data display with illumination
+ Trend recording (6 hrs or 24 hrs)
+ All channels rinsed during measurement to avoid any decay of ozone
+ Analog outputs
+ Two built-in flowmeters
+ Alarm lamp
+ Suitable for gas and water

Technical data

Programmable parameters: measuring period adjustable for each channel
Number of channels: 4 / 8 (others on demand)
Flow meters: 2 flow meters with flow meter sensors for the surveillance of the ozone flow to the measuring devices
Continuous gas flow on non-active channels
Compatible devices: ozone anaylzers LUM, MP, GM-PRO
PLC: SIEMENS
Display: SIEMENS
Keyboard: Touch-panel
Safety monitoring: Alarm detection for 8 channels
Supply voltage: 110 / 240 VAC, 50/60 Hz (others on demand)
Dimensions: standard 19” / 6HU, rack-mountable
Certifed: EC 17025
Approval: CE

Please contact for further info.
